• Simultaneous Numerical and Graphical Display of Humidity and Temperature Readings, Plus Time and Date
• Measures Humidity (10 to 95% RH) and Temperature (-20 to 140°F) Plus Included LabVIEW™ Based Software—Calculates and Graphs Dew Point, Wet Bulb, and GPP (Grains per Pound)
• Large Dual Graphical LCD with Adjustable Vertical and Horizontal Settings
• Internal Memory Records up to 49,000 Data Points
• LCD Indicates Percentage of Memory Remaining
• Replaceable Probe Does Not Require Recalibration
• Detachable Probe Extends up to 1 m (3.3') for Measurements in Closed Environments
• Audible and Visual Alarm with Hi/Low Setpoints
• Output Socket Used with Optional External Alarm Module
• Scroll the Cursor to Display Selected Data Recorded
• Desk or Wall Mount Applications
• Monitor and Record Laboratory or Clean Room Temperature and Humidity History
• Record Process Conditions
• Generate Warning When Conditions are Outside Required Limits
• Monitor Controlled Environment Areas Such as Freezers, Storage Areas and Other Critical Areas
• Store Humidity and Temperature Historical Data for Report Generation

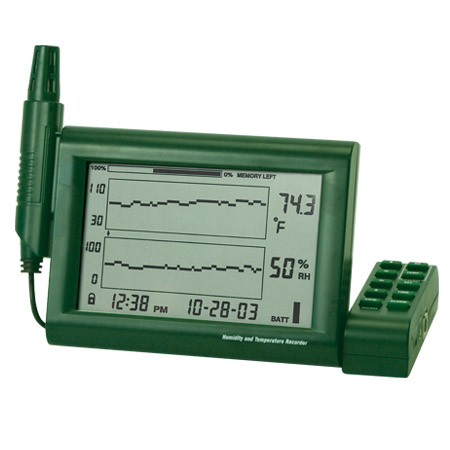

The environmental paperless monitor provides PC-based remote surveillance of environmental conditions in critical HVAC applications such as computer server rooms, clean rooms, laboratories, museums, warehouses, or any remote facility. View and record temperature and relative humidity. Data points can be transferred to PC via RS232 serial port for further analysis. The remote (detachable) probe senses the ambient conditions while the LCD graphs and provides numerical representation of the readings. Programmable audiovisual alarms alert the user when ambient conditions reach alarm presets. The optional alarm module permits automatic relay switching when alarm presets are reached. The software is a full-featured program that allows you to set up all data logger functions including sampling rate, logging duration, start mode, logging mode, and high and low temperature alarm values.

Specifications
Relative Humidity Range: 10 to 95%
Temperature Range: -20 to 140°F (-28 to 60°C)
Accuracy: ±3% RH; ±1°C (±1.8°F)
Dimensions: 129 x 195 x 22 mm (5 x 7.7 x 0.9")
Weight: 357 g (12.6 oz)
